Product Details:
Payment & Shipping Terms:
|
Current: | 2800mA | Voltage: | 30-36v |
---|---|---|---|
Chip Array: | 8P10S | Chip Material: | InGaN/GaAsp |
Product Name: | 80w Uv 395nm Led | Lifetime: | 50000h |
Quality Warranty: | 2years | Power: | 80w |
Chip Brand: | Epistar/Epileds/Cree/Sanan Etc. | ||
Highlight: | ultraviolet LEDs |
shenzhen 80w integrated 395nm high power uv led diodes for uv printer
Specifications:
Electrical / Optical Characteristics at TA=25℃
Parameter |
Symbol |
Min |
Typ. |
Max. |
Unit |
Test Condition |
Luminous Flux |
Φ |
200 |
220 |
240 |
Lm |
IF =3500mA |
Viewing Angle |
2θ1/2 |
110 |
120 |
130 |
deg |
IF =3500mA |
Wavelength |
WD |
395 |
398 |
400 |
nm |
IF =3500mA |
Forward Voltag |
vF |
30 |
33 |
36 |
V |
IF =3500mA |
Reverse Current |
IR |
|
|
10 |
uA |
VR = 5V |
Absolute Maximum Ratings at TA=25℃
Parameter |
Maximum Rating |
Power Dissipation |
80W |
Peak Forward Current(1/10 Duty Cycle, 0.1ms Pulse Width) |
3500mA |
Continuous Forward Current |
2800mA |
Derating Linear From 30℃ |
0.07mA/℃ |
Reverse Voltage |
5V |
Operating Temperature Range |
-20℃ to + 80℃ |
Storage Temperature Range |
-30℃ to + 100℃ |
Lead Soldering Temperature [1.6mm(.063") From Body] |
260℃ for 5 Seconds |

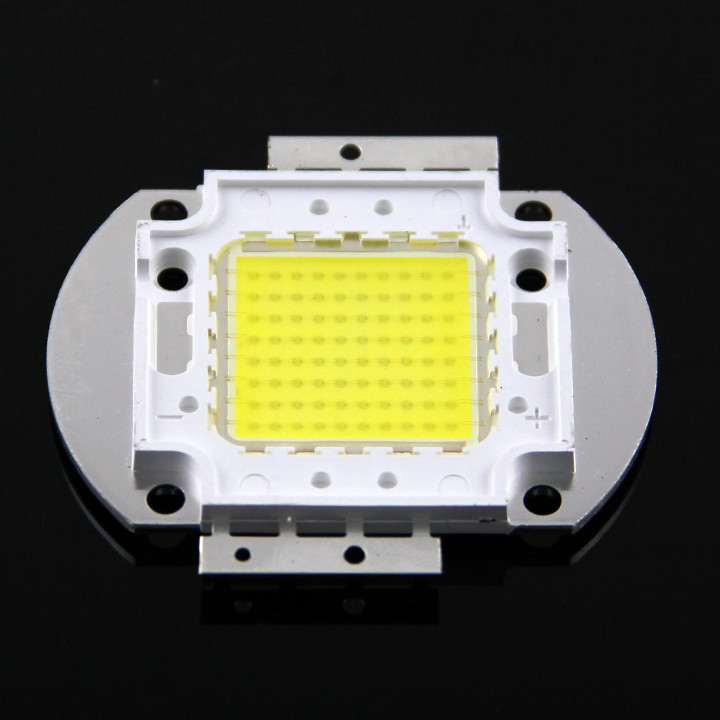

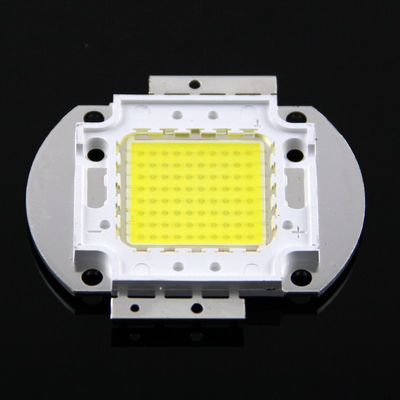

Product photos:
Main selling products:
High Power led: From 1 watt led to 400 watt Led in all colors.
Led diodes: round led, flat top led, concave led, nipple led, straw hat led, bullet led, oval led,
piranha led, square led from 2mm to 10mm.
SMD LED: 2835, 5050, 3528, 1206, 0603, 020 etc.
Led uv nail lamp: from 6w to 60w led uv nail lamp.
Led street light: from 50w to 330w fashion led street lights
Led grow light: all kinds of power and shape are available
Led aquarium light: all kinds of power available
Color available: red, green, blue, yellow, white, UV, IR, RGB, bicolor, etc. Available
Wavelength available: from 265nm to 940nm.
