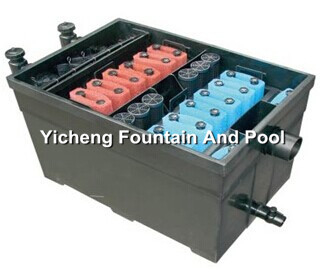

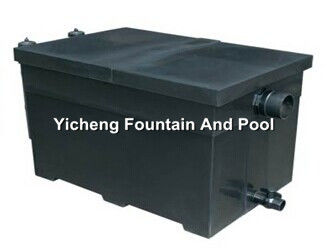

UV Lamp Filtration System , Construction Biological Fish Pond Filters

UV Lamp Filtration System , Construction Biological Fish Pond Filters
UV Lamp Filtration System , Construction Biological Fish Pond Filters UV Lamp Filtration System , Construction Biological Fish Pond Filters

Large Image :  UV Lamp Filtration System , Construction Biological Fish Pond Filters

Product Details:
Place of Origin: China
Brand Name: YICHENG
Certification: CE
Model Number: 110A, 120A, 130A, 160A
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Carton
Delivery Time: 5-10 days
Payment Terms: Ex-worked, L/C, T/T, Western Union
Supply Ability: 1000PCS/week
Detailed Product Description
Filter Volume: 400L, 550L, 650L Filter Brush: 12pcs, 14pcs, 17pcs, 18pcs
Filter Foam: 8pcs, 12pcs UV Lamp: 55W X 2pcs
Pond Size: 12m3 - 20m3 Water Pump: SP620
Highlight:

uv nail lamps

UV Lamp Filtration System , Construction Biological Fish Pond Filters







Instruction:

 1. Effective pressure filters with integrated UVC clarifier.

 2. Rinsing with dischaege into channel like waterfall or watercourse, can be operated even if the filter is buried in the ground.

 3. Polluted water is pumped into a seated, closed system, during which a working pressure of 3m water head can build up.

 4. The patent technology, make maintenance convenience.

 5. The newest design make the filtrate area one time than before. Can improve filtrate effect in highest degree and extend the maintain period.





Parameter:

1. Superior bio filtration with the rugged Bio-Active Pressure Filter.



2. Powerful Bio-Activator Media provides the key to extreme biological filtration with enhanced surface area.



3. New vortex internal pumping jets ensure maximum water-to-media contact to support bacterial growth and provide for superior bio-activity.



4. A handy backwashing system activates at the click of a button to thoroughly clean the filter without getting your hands dirty.



5. External pressurized design may be buried or concealed outside of your pond to help maintain that natural look.



Model Water inlet Fiter volume Filter brush Ffilter foams Suitable for ponds with fish Water pump UV germicidal lamp Size(mm)
110A φ40-50 / φ110 400L 14PCS 12PCS 12m³ SP620 / SP630 UV-PL55W 2PCS 1100 X 780 X 735
120A φ40-50 / φ110 550L 12PCS 8PCS 15m³ SP620 / SP630 UV-PL36W 3PCS 1210 X 820 X 810
130A φ40-50 / φ110 550L 17PCS 12PCS 15m³ SP620 / SP630 UV-PL55W 2PCS 1210 X 820 X 810
160A φ110 / φ75 650L 18PCS 12PCS 20m³ HP25000 / HP30000 JUV-2620B 8PCS 1680 X 780 X 830
