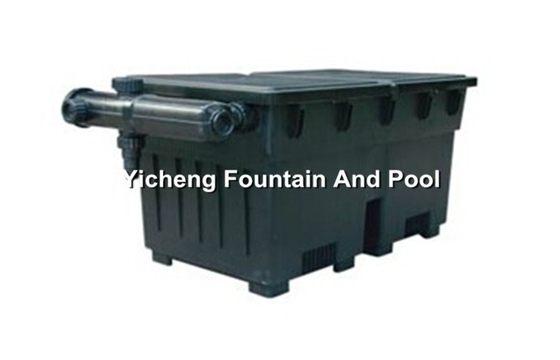

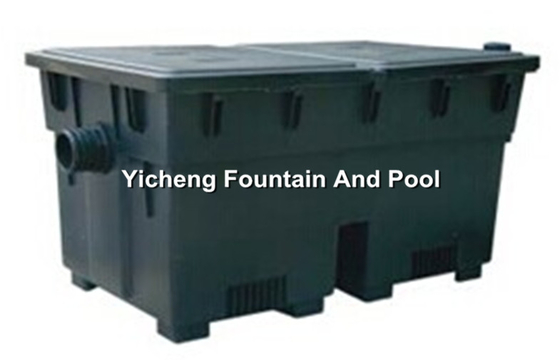

Embedded Type Biological Fish Pond UV Filtration System For 7m3 Pond

Embedded Type Biological Fish Pond UV Filtration System For 7m3 Pond
Embedded Type Biological Fish Pond UV Filtration System For 7m3 Pond Embedded Type Biological Fish Pond UV Filtration System For 7m3 Pond Embedded Type Biological Fish Pond UV Filtration System For 7m3 Pond

Large Image :  Embedded Type Biological Fish Pond UV Filtration System For 7m3 Pond

Product Details:
Place of Origin: China
Brand Name: YICHENG
Certification: CE
Model Number: 100IA, 100IB
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Carton
Delivery Time: 5-10 days
Payment Terms: Ex-worked, L/C, T/T, Western Union
Supply Ability: 1000PCS/week
Detailed Product Description
Fiter Volume: 100L Filter Brush: 10pcs
UV Lamp: 24W Pond Size: 7m3
Water Pump: SP606 Or SP606F
High Light:

uv nail lamps

,

36w uv lamp

Embedded Type Biological Fish Pond UV Filtration System For 7m3 Pond







Instruction:

 1. Effective pressure filters with integrated UVC clarifier.

 2. Rinsing with dischaege into channel like waterfall or watercourse, can be operated even if the filter is buried in the ground.

 3. Polluted water is pumped into a seated, closed system, during which a working pressure of 3m water head can build up.

 4. The patent technology, make maintenance convenience.

 5. The newest design make the filtrate area one time than before. Can improve filtrate effect in highest degree and extend the maintain period.





Parameter:

1. Superior bio filtration with the rugged Bio-Active Pressure Filter.



2. Powerful Bio-Activator Media provides the key to extreme biological filtration with enhanced surface area.



3. New vortex internal pumping jets ensure maximum water-to-media contact to support bacterial growth and provide for superior bio-activity.



4. A handy backwashing system activates at the click of a button to thoroughly clean the filter without getting your hands dirty.



5. External pressurized design may be buried or concealed outside of your pond to help maintain that natural look.



Working principle:



To filter inside take full advantage of the potential energy of water, the water in the process of from high to low movement by filtering medium quality, achieve filtering effect.
With sterilization lamp principle of work: the product adopts advanced technology design of principle of tube after launch, can produce uva and uvb rays are two kinds of light, which can effectively kill harmful bacteria.





Advantages:



1. Polluted water is pumping into a sealed, closed system,during which a working pressure of 3m water head can built up.
2. Special filtering function, highly effective UV device to kill various of germs
3. Scientific waterproof design of the ring to ensure its airproofing.
4. Multistage hose connector suitable for different size of tubes.
5. New pressure filter series,with high purifying function.
6. Super bio filter,it can increase the filter water.
7. Additional UV germicidal lamp,restrain green algae growth,
8. prevent water quality oxidation,purify the pond water.
9. Filter quiet and durable,easy to install and clean
10. Convenient for various pipe connecting

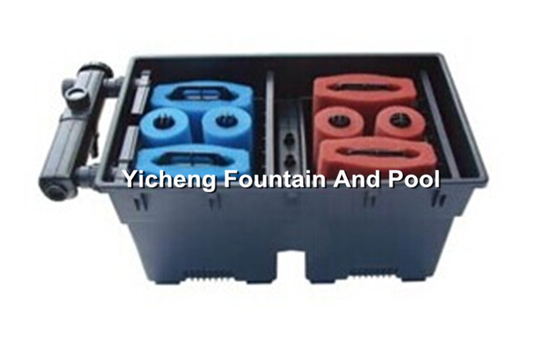

Structure:



1. Activated carbonand Biochemical cotton filter media
2. Effective pressure filters with integrated UVC clariifier
3. Fixed with UV lamp inside
4. Provide overpressure reveal function
5. Manual backflush system



Model Water inlet Fiter volume Filter brush Ffilter foams Suitable for ponds with fish Water pump UV germicidal lamp Size(mm)
100IA φ25-32 / φ75 100L 10PCS / 7m³ SP606 / SP606F UV-H24W 1PCS 800 X 500 X 460
100IB φ25-32 / φ75 100L 10PCS / 7m³ SP606 / SP606F UV-H24W 2PCS 800 X 500 X 460
